Overview

Bag filters have many uses in coolant filtration. They are often used as a pre-filter to remove large solid contaminants that might cause pump problems. They are well suited applications with modest solids loading.

Applications

  • Broaching, Hobbing, Trepanning
  • Gear Hobbing
  • Boring, Drilling
  • Chucking, Milling
  • Turning, Lathes, Machining Centers

Specifications

Chips and swarf that are porous can fill the bag, providing very efficient filter media use. Bags are a good pick on applications that require the contaminants to be packed in drums for disposal, as the bags collapse and pack easily.

Bag filters have a relatively small surface area, about 4 - 5 sq. ft. in the largest standard housings. Therefore, we do not recommend them where the solids form a thin impervious layer, blinding off coolant flow.

Design and Customization

Polytech can provide loose bag housings or complete systems. Speak to one of our engineers about your application's specific requirements.

Contact Us

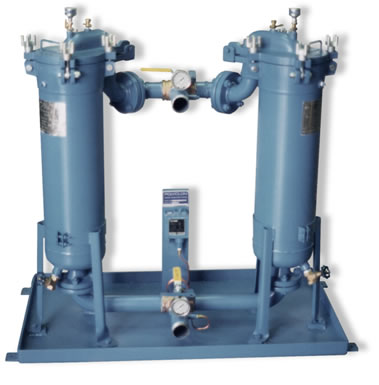

Dual housings piped for parallel operation. Pressure switch signals need to change filters.
